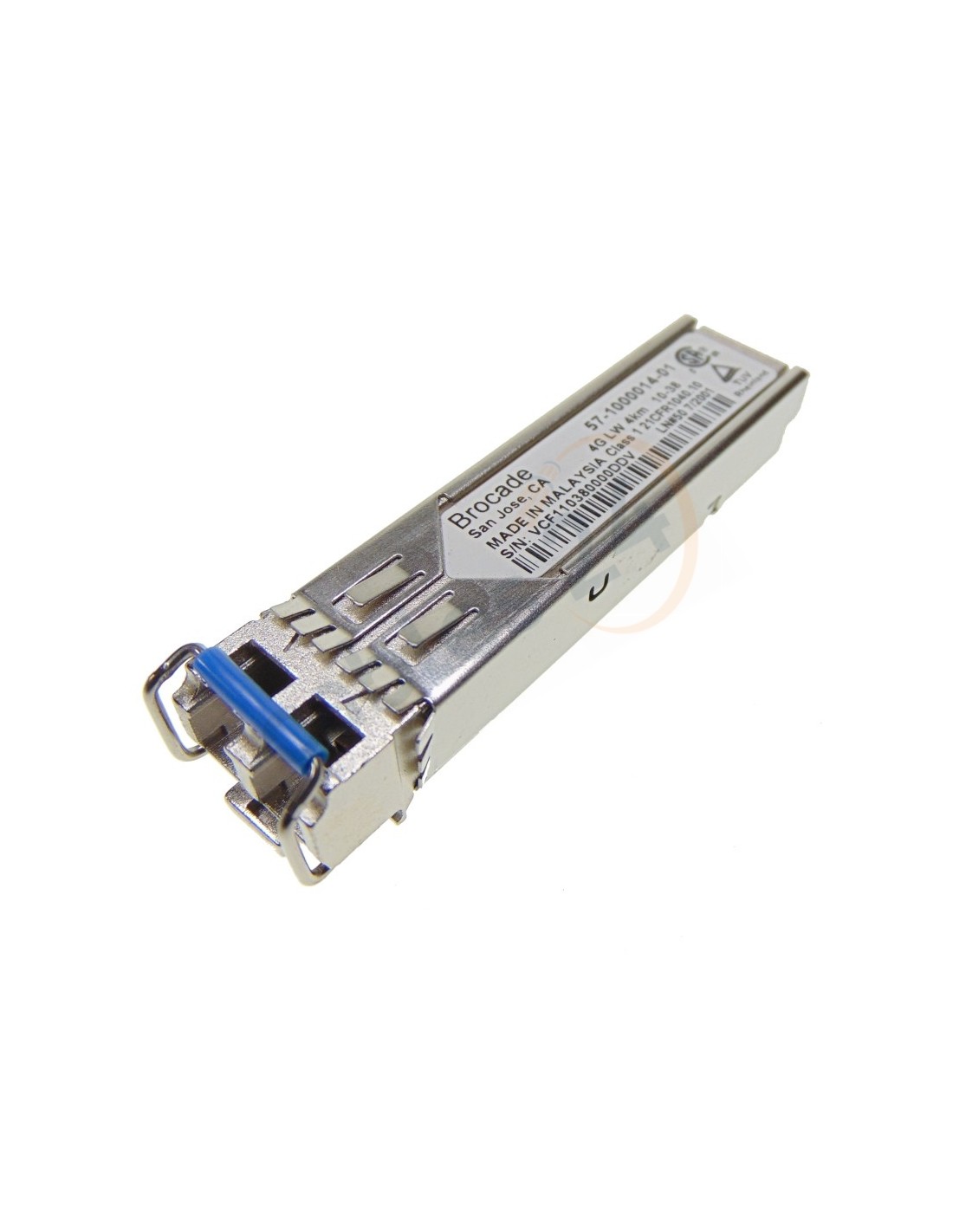

57-1000014-01 Brocade genuine refurbished transceiver

57-1000014-01 Brocade genuine refurbished transceiver

Disponibilidad: 0

57-1000014-01

Brocade SFP Tri Rate 1.06 / 2.125 / 4.25 Gb/s Fibre Channel and 1.25Gb/s 1000Base-LX Ethernet and 1000Base-LX10  transceiver module for SMF, 1310-nm wavelength, up to 4 km at 4.25 Gb/s and 10 km at ≤ 2.125 Gb/s on 9/125μm SMF. Dual LC/PC connector.

Description

They are compatible with Fibre Channel FC-PI-2 10.02 standard for 4km distances at 4.25 Gb/s and 10km distances at 2.125 and 1.06 Gb/s.

They are also simultaneously compatible with Gigabit Ethernet 1000Base-LX as specified in IEEE Std 802.33 and 1000Base-LX10 as specified in IEEE Draft P802.3ah/D2.04.

The optical transceivers are compliant per the RoHS Directive 2011/65/EU.

Brocade transceivers

Product Details

Compatibility
Brocade
Connection
Dual LC
Type
SFP
ROHS Compliant
Yes
TX Wavelength
1310nM
RX Wavelength
1310nM
DDM/DOM
Yes
Operating temperature range
-40 to 85°C (-40 to 185°F)
F.O. SM (OS2) Range
10 Kilometers
Fiber optic type
Single mode
Standard
1000BASE-LX
Dual Rate 1.06 / 2.125 Gb/s Fibre Channel

Reviews (0)

No reviews
