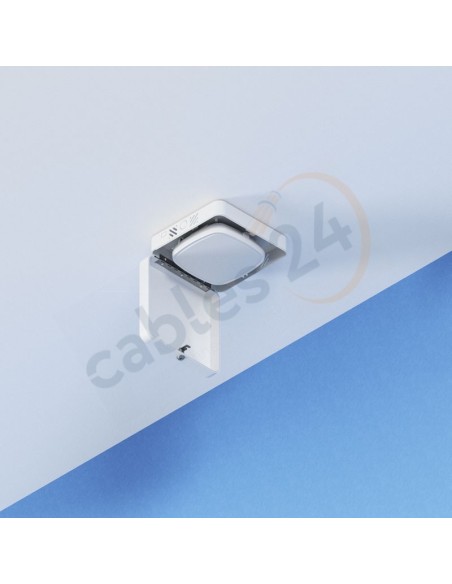

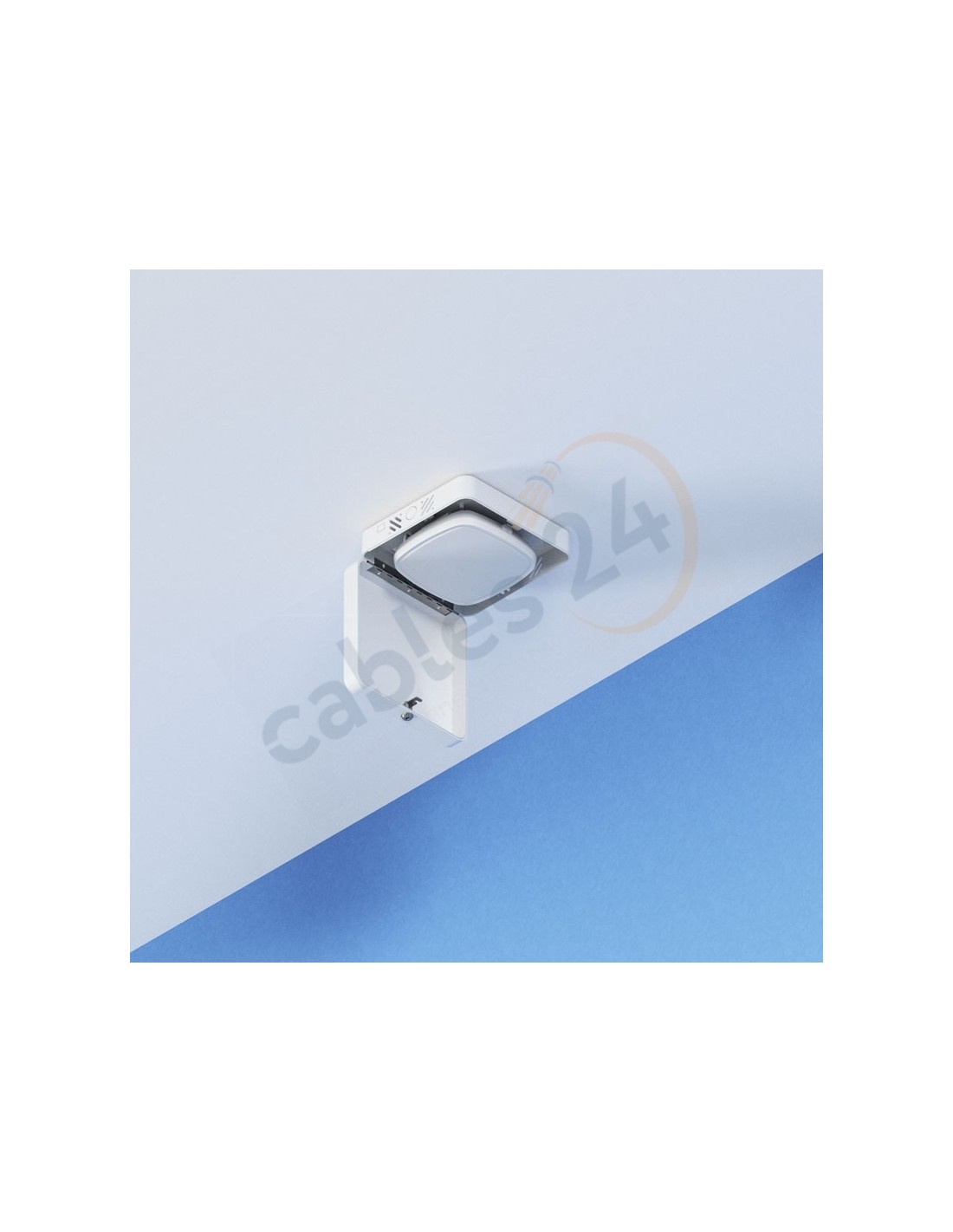

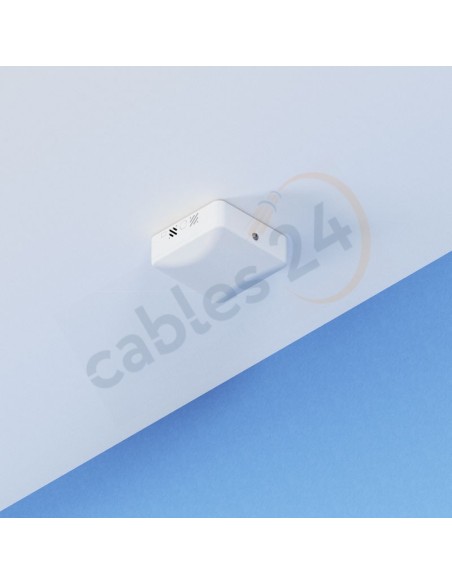

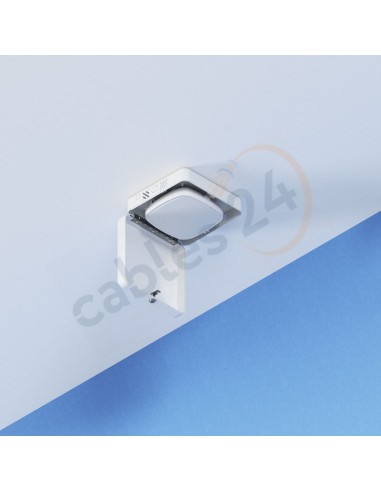

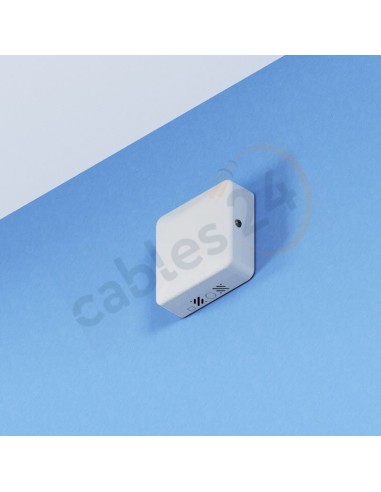

Oberon 1015-00 Hi-Bar™ Plastic Wi-Fi Access Point Lock Box with Opaque Door

This rugged ABS plastic enclosure is virtually transparent to wireless signals so APs with integrated antennas or small detachable antennas may be protected. The box can be mounted directly over the telecommunication outlet, and cable raceway or conduit can be conveniently terminated.


Features & Benefits


• Accommodates most vendors’ APs
• Locking, fully-hinged door
• Simplify code, industry directives, policy, and aesthetics compliance


Technical Specifications


• Design: Wi-Fi AP enclosure designed to be surface mounted on hard-lid ceilings or walls. Designed to accommodate APs with integrated or non-detachable antennas
• Performance: Ventilated, paintable, impact resistant ABS plastic enclosure is virtually transparent to wireless signals
• Oberon Hi-Bar shaped, locking, fully hinged door, keyed alike
• Universal T-bar for most vendors’ APs, mounting features for Cisco and Meraki APs
• Opening in back allows for placement directly over outlet
• Twist outs in sidewalls for conduit or raceway

Construction: White Textured UL94-HB ABS Plastic Enclosure Base, White Textured UL94-HB ABS Plastic Enclosure Cover (For -00 SKUs Only), Clear Textured UL94-HB ABS Plastic Enclosure Cover (For -C SKUs Only), 18 Ga. White Powder Coated Steel T-Bar Bracket, 14 Ga. White Powder Coated Steel Right-Angle Bracket (For -RAB SKUs Only)

Exterior Size: 11.10 x 11.10 x 4.40 in. (281.9 x 281.9 x 111.8 mm)

Interior Size: 10.75 x 9.5 x 4.25 in. (273.1 x 241.3 x 108 mm)

Made in the USA

For use with the following Wi-Fi/Small Cell Access Points:

Aerohive
AP110/120, AP20, AP250, AP320, AP330, AP340/350, AP370

Aruba
AP-205, AP-205H, AP-215, AP-225, AP-305, AP-315, AP-325, AP-335, AP-345, AP-505, AP-505H, AP-515, AP-535

Cisco
1600i/1700i/2600i/2700i/3500i/3600i/3700i Series, 1810W Series, 1815W, 1830i/1850i Series, 2800i/3800i Series, 4800 Series, 702W, 9115AXI, 9117AX, 9120AXI, 9130AXI

Corning Spidercloud
SCRN-310, SCRN-320/SCRN-220

Extreme Networks
AP305C, AP3705i, AP3710i, AP3715i, AP3765i, AP3801i, AP3805i, AP3825i, AP410C, AP410i, AP505i / AP510i, AP510C, AP650

Meraki
MR32/34/42, MR33, MR52/53

Mist
AP41, AP43

Proxim
ORiNOCO AP-9100

Ruckus
R310, R320, R510, R550, R610, R650, R710, R720, R730, R750, ZoneFlex H500

Ubiquiti
UniFi UAP-AC-HD, UniFi UAP-XG


Includes:

• (1) Enclosure with Keyed Lock
• (1) T-Bar Bracket
• (4) #6 x 5/16 in. Flat Head Thread-Forming Screws for Plastic
• (4) #6 x 5/16 in. Pan Head Thread-Forming Screws for Plastic
• (4) Cushioning Washers
• (2) Keys for Lock
