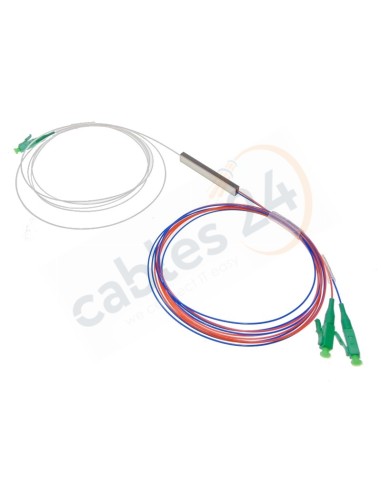

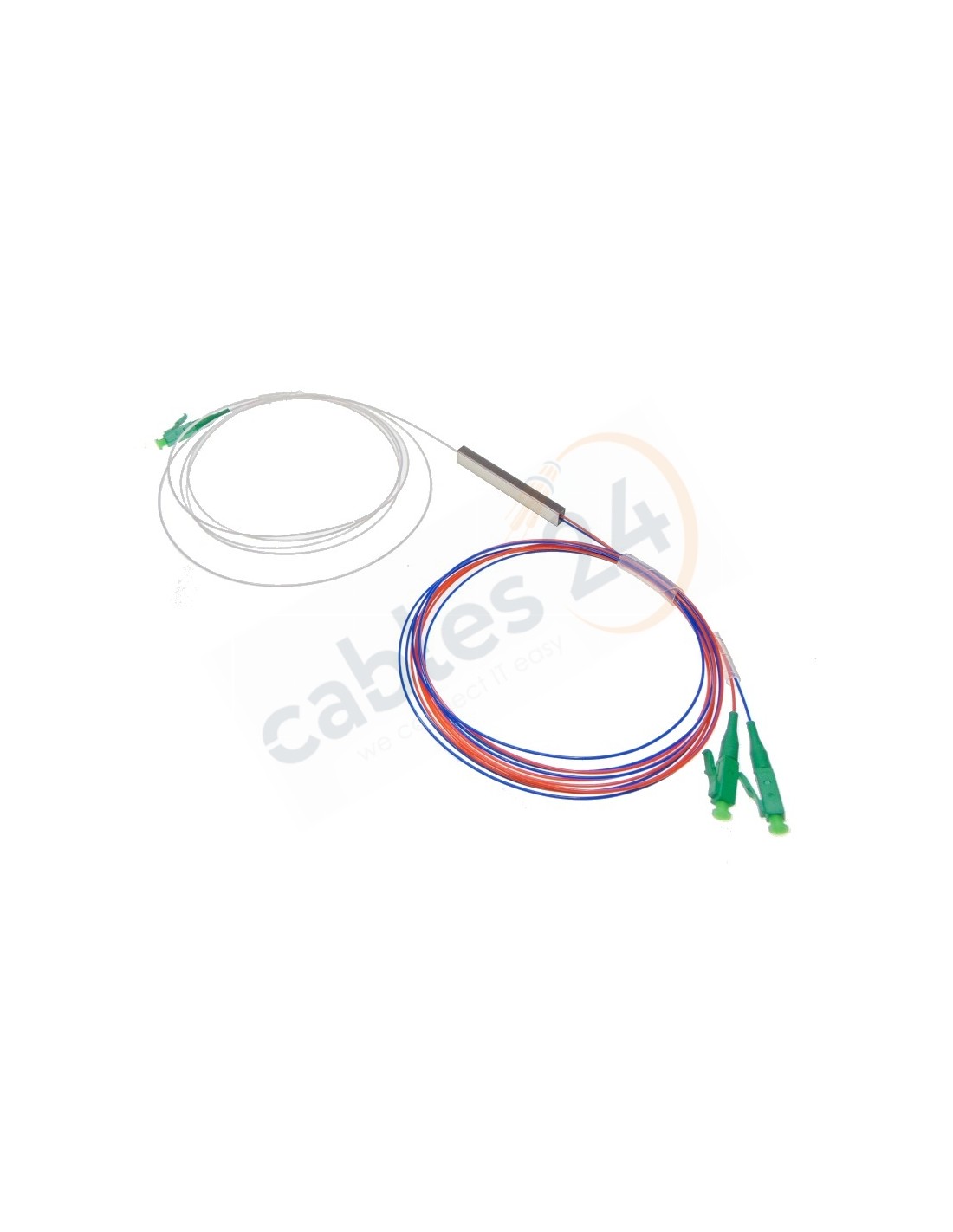

Mini Module PLC Splitter, Blockless, 900μm, LC/APC, Singlemode

Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management.

Package Style: Mini Module
Fiber Type: Singlemode G.657A1
Connector Type: LC/APC
Input/Output Fiber Diameter: 900μm
Input/Output Fiber Length: 1.5m
Insertion Loss: ≤4dB
Return Loss: ≥55dB
Loss Uniformity: ≤0.4dB
Directivity: ≥55dB
Polarization Dependent Loss: ≤0.2dB
Temperature Dependent Loss: ≤0.5dB
Wavelength Dependent Loss: ≤0.3dB
Operating Bandwidth: 1260~1650nm
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
