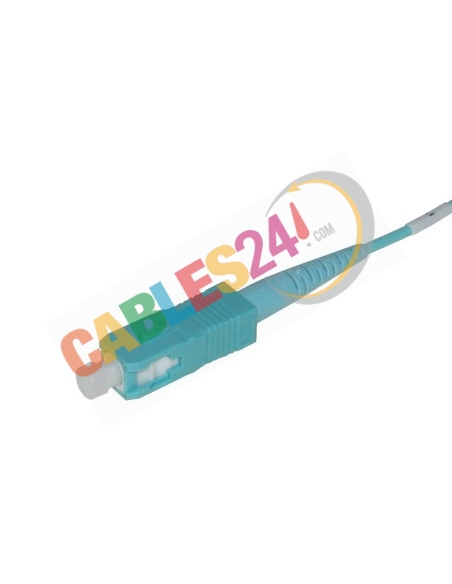

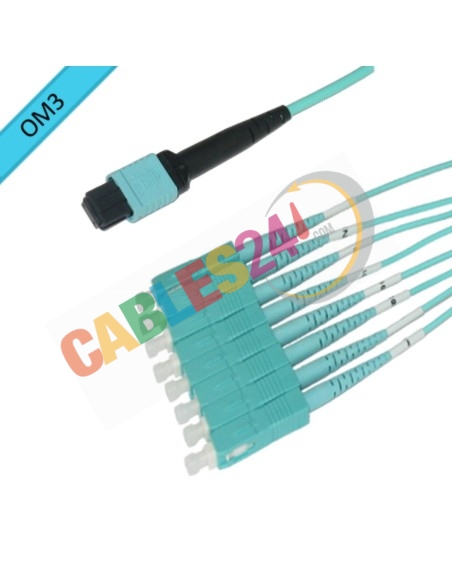

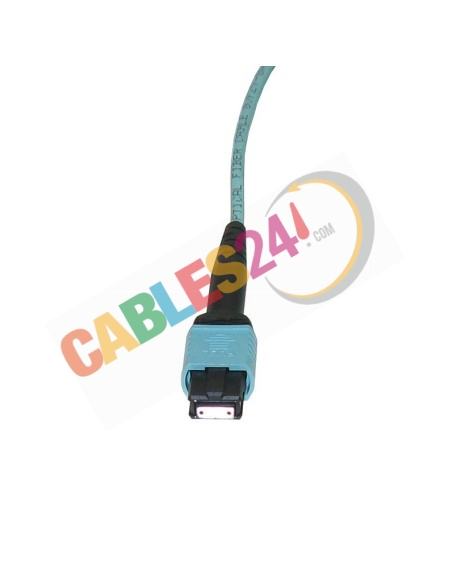

Fiber Optic MPO Patchcord OM3 50/125 LSZH MPO (Female) to 4 SC Duplex (1-4/9-12)

Shop Online Cables24, available for sale Multimode Fiber Optic Cable LSZH 50/125 OM3 MPO / MTP 8 fiber OM3 Polarity A, at the best price, has an MTP connector facing by precision guide pins that align it without any margin error. The ferrule of a MTP / multimode MPO connector has a flat end and at the other end has a termination with four connectors SC Duplex (01.04 / 12.09). In Cables24 we assure 100% verification of all cables and that they comply with all dimensions and tolerances required for inter operability between products from different manufacturers.

Fiber type: OM3 Multimode 50/125

Fibres: 8

Connectors: 1xMPO 12F female ; 4xSC Duplex

Polish: PC

Typical insertion loss (IL): ≤ 0,15 dB

Maximum insertion loss (IL): ≤ 0,50 dB

Return loss (RL): ≥ 35 dB

Operating temperature: -40 to 80ºC

Durability: 500 cycles

Approvals: EC61754-7, TIA/EIA 604-5

Length: Several lengths available

Colors: Acqua (Blue) or Erika Violet

We are manufacturers, if you want to buy a cable but can not find what you need or have questions, please contact us and we will help.
