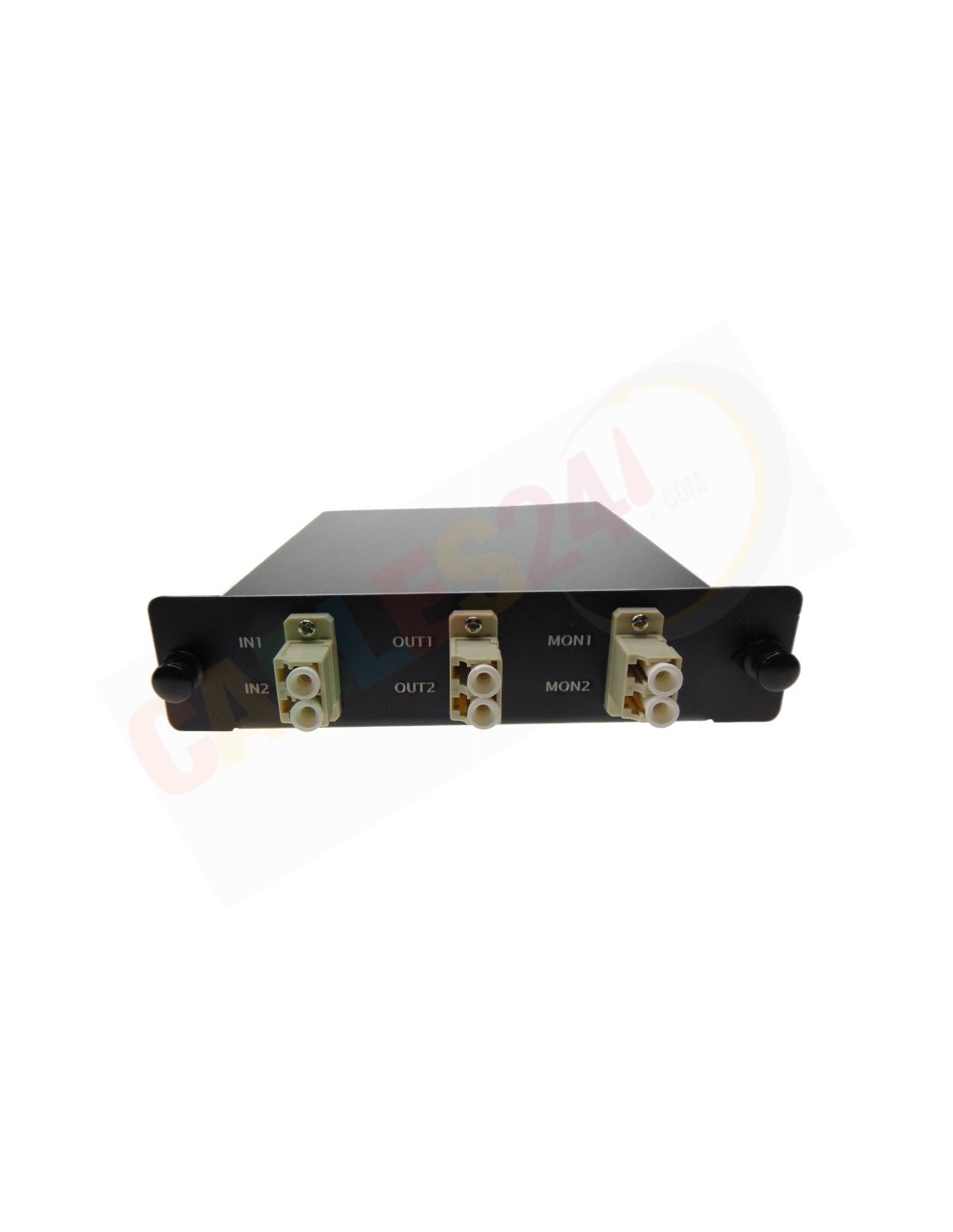

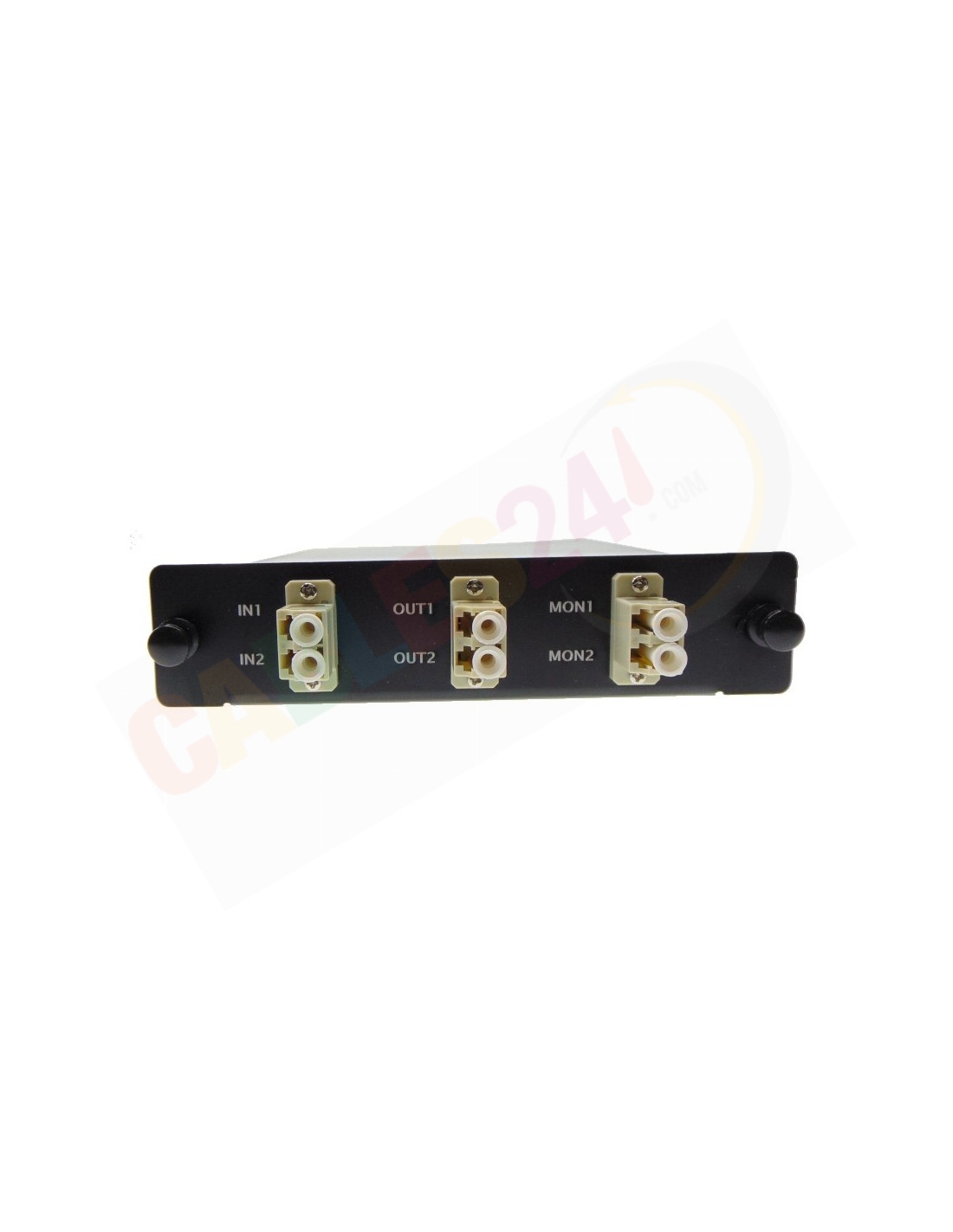

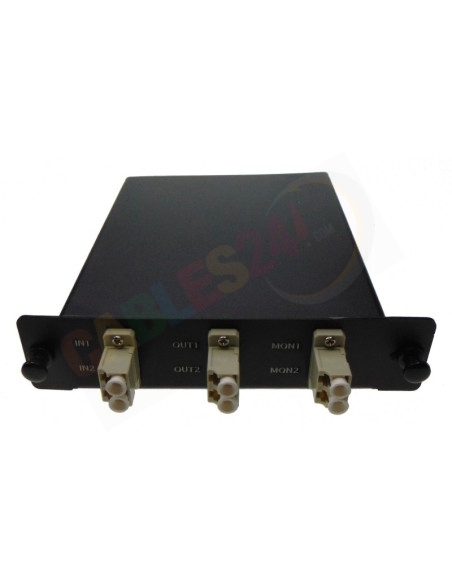

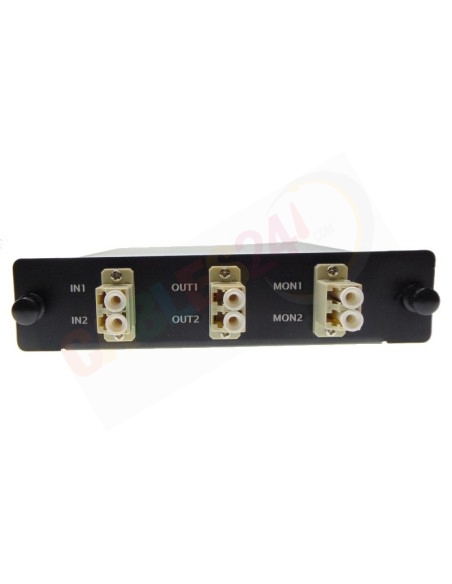

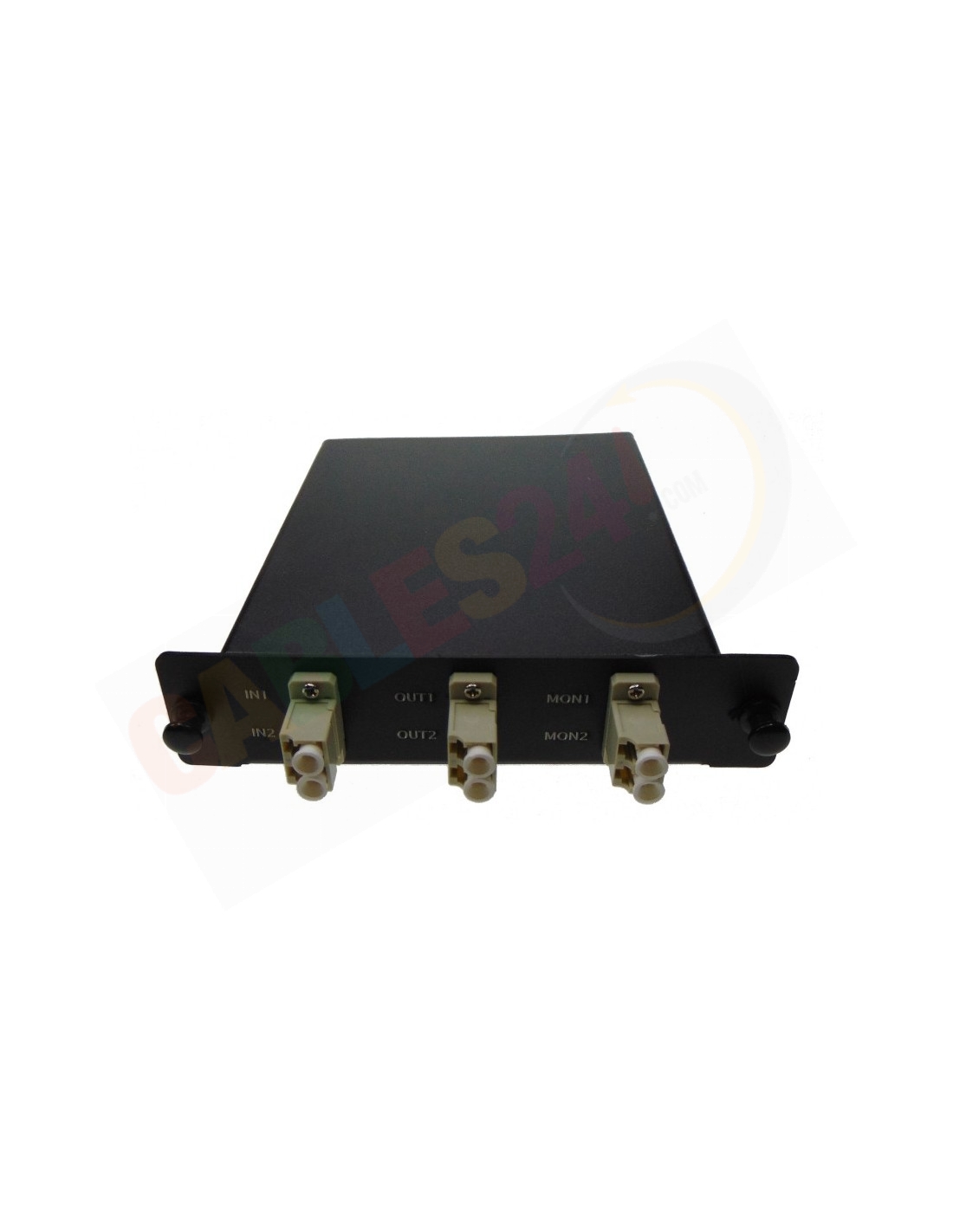

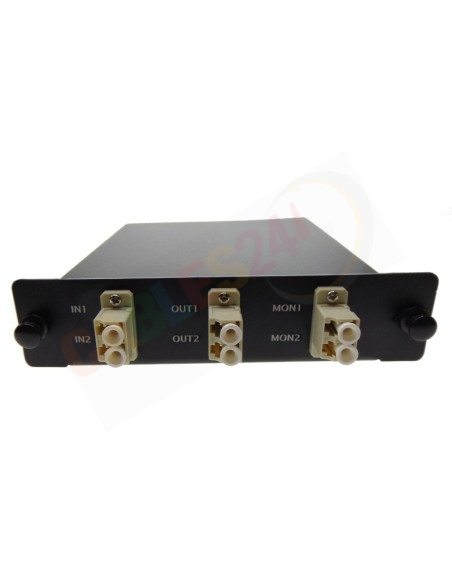

Passive fiber optic TAP that provides non-intrusive, permanent in-line network access for fiber monitoring devices. The 1-Link LC Fiber TAP enables the monitoring of a 1-100G fiber optic link. It delivers an exact copy of the signal on the network link without any disruption to the network. It is a fully passive device, requiring no power, which ensures it does not introduce a point of failure when deployed in a network. Is available in various fiber types and split ratios.
Non-intrusive in-line monitoring
Permanent network link guaranteed
Monitoring of all OSI layers
No packet loss
No point of failure
Passive, unpowered
Various split ratios available
Sign up or log in to check the best prices and add products to your cart
Technical Specifications:
Fiber type: Multimode OM4
Input port: 1 x LC Duplex
Output port: 1 x LC Duplex
Monitor port: 1 x LC Duplex
Split ratio: 50/50
Maximum insertion loss: < 4dB
