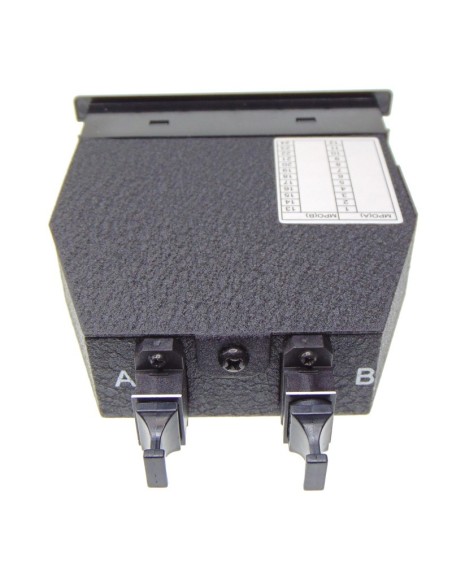

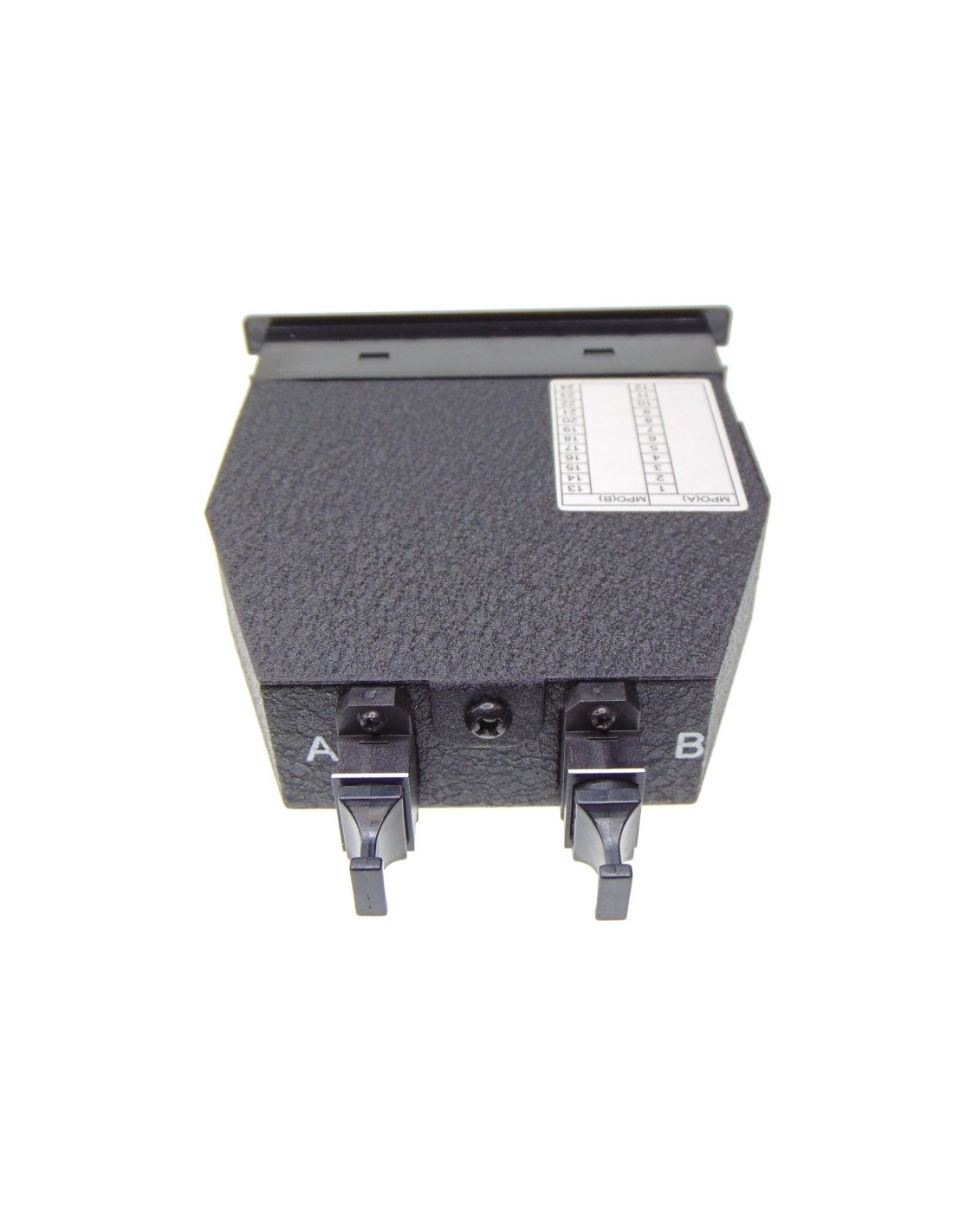

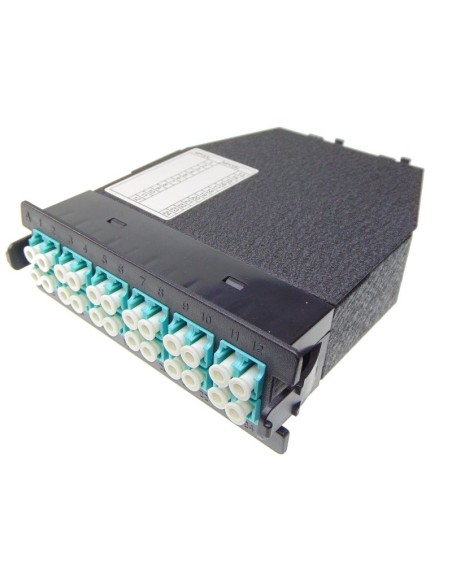

MPO/MTP Cassette OM4 Type B 2 x MPO to 12 x LC Duplex for management enclosure

MTP fiber optic cassettes are pre-terminated and pre-tested enclosed units. They contain 12-fiber or 24-fiber factory terminated fan-outs inside. MTP modular cassettes serve to “transition” small diameter ribbon cables terminated with MPO connector(s) to the more common LC or SC interface used on the transceiver terminal equipment. Typically, the fan-outs incorporate LC, SC connectors plugged into adapters on the front side of the cassette and MPO connector(s) plugged into MPO adapter(s) mounted at the rear of the cassette.

CHARACTERISTICS

High density, small size.

Quick and easy installation.

12 fiber version with an MPO connector to 6 LC duplex or 12 SC simplex adapters.

24-fiber version with two MPO connectors to 2 x 6 duplex LC adapters.

Available in configuration for polarity method A, B, or C.

Available with 50/125 OM3 and OM4 multimode fiber optics or 9/125 singlemode fiber optics.
