The QMA Connector: Features, Applications, and Advantages

The QMA connector (Quick-lock Mechanism Adapter) is a high-performance coaxial connector designed for radio frequency (RF) applications that demand fast and reliable connections. This connector is a variation of the popular SMA connector, incorporating a quick-lock mechanism that eliminates the need for threading, making it ideal for environments where installation and removal speed is crucial and space is limited.

A Brief Introduction: History of the QMA Connector, Its Origin, and Evolution

The QMA connector originated from the need to improve the efficiency and practicality of traditional coaxial connectors in high-frequency applications. Although SMA connectors (SubMiniature version A) have been a standard in the RF industry since their invention in the 1960s, certain limitations prompted the creation of a more versatile and user-friendly alternative. The QMA was developed to address these demands, quickly becoming popular in sectors requiring fast and reliable connections.

Origin of the QMA

1. Inspiration from the SMA:
   The QMA connector was designed as an evolution of the SMA. Sharing its electrical compatibility, the QMA aimed to resolve challenges associated with the SMA’s threaded system, which could be cumbersome in high-density setups or during repetitive installations.
2. Collaboration Among Manufacturers:
   The development of the QMA was driven by major coaxial connector manufacturers, including industry leaders like Rosenberger, Radiall, and Amphenol. These companies sought a joint solution that balanced technical performance with ease of use.
3. Initial Introduction:
   The QMA connector was introduced to the market in the early 2000s, positioning itself as an innovative option for modern applications in telecommunications, defense, and test equipment.

Motivations Behind Its Development

1. Demand for Faster Connections:
   The proliferation of communication networks, such as mobile base stations and 4G/5G network infrastructures, increased the need for connectors that could be installed and removed quickly without compromising connection stability.
2. Space Optimization:
   As electronic devices became more compact, connector density in panels increased. The QMA’s threadless design facilitated its integration into space-constrained environments.
3. Improved Mechanical Resistance:
   The push-pull coupling mechanism not only speeds up connection but also reduces mechanical wear and sensitivity to vibrations, which were limitations of SMA connectors in demanding environments.

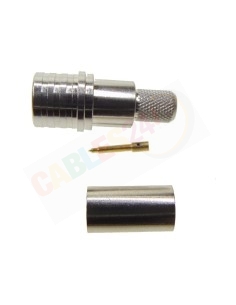

Key Features of the QMA Connector

1. Quick-Lock Mechanism:
   The QMA uses a push-pull coupling system instead of traditional threading, significantly reducing the time required for connections and disconnections.
   This design ensures a secure and reliable connection without compromising electrical performance.
2. Frequency Range:
   QMA connectors are designed to operate efficiently within a frequency range that can extend up to 18 GHz, depending on the model and manufacturer.
3. Standard Impedance:
   These connectors maintain a characteristic impedance of 50 ohms, making them ideal for RF and microwave applications.
4. Compact Dimensions:
   Compared to other high-performance connectors, the QMA offers a compact design, facilitating its integration into equipment where space is limited.
5. Construction Materials:
   Typically manufactured with high-quality materials such as nickel-plated brass, stainless steel, or gold-coated alloys, ensuring corrosion resistance and long-term mechanical stability.
6. Compatibility:
   The QMA is electrically compatible with the SMA, allowing it to be used in systems originally designed for this type of connector.

Advantages of the QMA Connector

1. Ease of Installation:
   The push-pull design enables faster connections compared to threaded connectors. This is particularly useful in applications requiring multiple connections and disconnections during installation or maintenance.
2. High Reliability:
   The quick-lock system ensures a stable connection even in environments with vibrations or mechanical movement, making it suitable for mobile or industrial applications.
3. Reduced Sensitivity to Torsion:
   Unlike threaded connectors, the QMA is not subject to torsional forces during installation, minimizing mechanical wear and extending the connector’s lifespan.
4. Space Optimization:
   Its compact size and ergonomic design allow for higher connector density in equipment and panels.
5. High-Frequency Performance:
   With its capability to handle high frequencies, it is ideal for telecommunications, radar equipment, test and measurement systems, and data transmission devices.

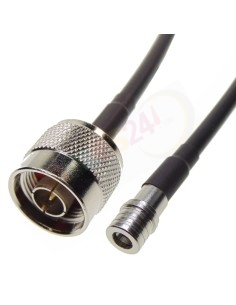

Applications of the QMA Connector

The QMA connector is widely used across various industries due to its versatility and performance. Some of its most common applications include:

1. Telecommunications:
   Antenna equipment for mobile networks (4G, 5G).
   Base station infrastructure.
2. Industrial Automation:
   Sensor systems and monitoring devices.
3. Defense and Aerospace:
   Radar systems and tactical communication equipment.
4. Medical Technology:
   Medical imaging systems and diagnostic equipment requiring reliable connections.
5. Test and Measurement:
   Instrumentation for testing RF and microwave devices.

QMA vs. SMA Comparison

The QMA connector represents an innovative solution in the RF connector industry, combining ease of use with high technical performance. Thanks to its efficient design and advanced features, it has become a preferred choice for modern applications where speed, reliability, and space are critical factors.
